PRODUCT OVERVIEW

Alphaton®

Product type

Brick tiles

Lengths

Up to 1,500 mm

Heights

150 to 400 mm

System types

Gen. 06-Rapid;
L2-Rapid Landscape
L2-Rapid Portrait

DIN standards

DIN 18516, Part 1
for rear-ventilated facades with rainscreen cladding

Approvals

GENERAL TYPE APPROVAL
Z10.3-732

Longoton®

Product type

Brick panels in long format

Lengths

Up to 3,000 mm

Heights

150- to 1,000 mm

System types

Gen. 06 and soon
L² Rapid for horizontal format

DIN standards

DIN 18516, Part 1
for rear-ventilated facades with rainscreen cladding

Approvals

GENERAL TYPE APPROVAL:
Z-10.3- 805

Baguettes

Product type

Hollow ceramic elements e.g. oval, triangular, four-edge

Lengths

Op to 3,000 mm

Heights

150 to 400 mm

System types

With rearward attachment
screw straps or rapid system

Seraton®

Product type

Brick grid

Lengths

Up to 800 mm, special formats on request

Heights

Up to 480 mm, special formats on request

System types

Stainless steel rope construction

Special

Product type

Brick tiles in every desired format

Lengths

Individually selectable

Heights

Individually selectable

System types

Format dependent

Our products

© Martin Rudau | Nething Generalplaner GmbH, Neu-Ulm

WHAT DISTINGUISHES ALPHATON® TILES?

You can obtain ALPHATON® brick tiles in lengths of up to 1,500 mm. They are usable for both horizontal and vertical facades. The ALPHATON® tile facade is a product with general technical approval in Germany (Z-10.3-732) and meets the requirements of DIN 18 516 Part 1 for back-ventilated facades with rainscreen cladding.

© Alexander Bernhard

IN WHICH COLORS ARE ALPHATON® TILES AVAILABLE?

The ALPHATON® brick tiles are available as standard in 20 natural colors. These colors refer to intrinsic colors of the fired, unglazed ceramic tile, so that no visually-distracting shards can be made visible as a result of any cut ends on the surface. On an order basis, other natural special colors are also developed individually on request. In addition to the natural colors, in the company’s own laboratory we also develop glazes for any desired color or texture for an absolutely individual appearance.

+ More on our design options

WHAT DIMENSIONS CAN ALPHATON® TILES HAVE?

ALPHATON® brick tiles are available in 12 different standard formats from 150 to 400 mm in height and in lengths of up to 1,500 mm. In addition, special formats are possible here at any time.

WHAT SYSTEMS ARE THERE FOR ALPHATON® TILES?

For the installation of ALPHATON® brick tiles, you can choose between the systems L²R, L²R vertical and Gen.06. L²R and Gen. 06 are suitable for installation in horizontal format, L²R vertical, as the name suggests, for the installation of vertically aligned tiles.

+ To the Facade technology section

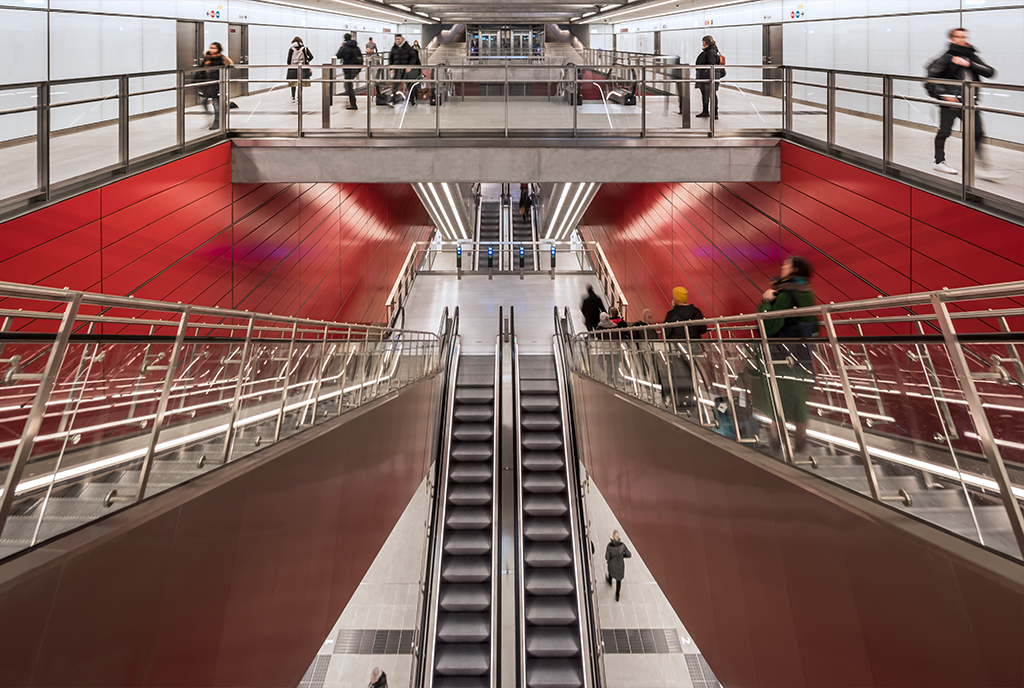

© Anke Müllerklein | schmidt hammer lassen architects, Copenhagen

TECHNICAL DATA ON ALPHATON® TILES

The gross shard density for ALPHATON® brick tiles amounts to > 2.0 g/cm³ pursuant to DIN 105 Part 4 Ceramic bricks. The brick tiles are frost-resistant pursuant to DIN EN 539, Part 2. Appearance and structure pursuant to DIN EN 1304, Annex B are fulfilled. There is a general type approval for ALPHATON®: Z-10.3-732: rear-ventilated outer wall cladding with rainscreen cladding with the ALPHATON® brick tiles. There is also a test certificate pursuant to DIN 18 516 Outer wall cladding, rear-ventilated, as well as certificates for frost resistance, ventilation and rearventilation of the structure, sound protection, heat protection, fire resistance duration with extinguishing water test, radar reflection loss and weather resistance (SO2).

© Didier Boy de la Tour | AFAA, Lyon

REFERENCES ON ALPHATON® TILES

ALPHATON® was the first product group from MOEDING. Like all other products and systems, ALPHATON® tiles and systems are constantly optimised and adapted to special requirements. Numerous impressive projects have come into being with this product type, each individual and unique in itself.

+ To ALPHATON® references

THE VARIETY OF PRODUCTS AT MOEDING

Vimeo

By downloading the video you accept the privacy policy of Vimeo.
More

Unlock Vimeo

WOULD YOU LIKE TO GAIN A LIVE IMPRESSION OF OUR CERAMIC TILES?

To this end, please use our sample order form and we will gladly send you the tile pieces that are of interest to you.

To the form
